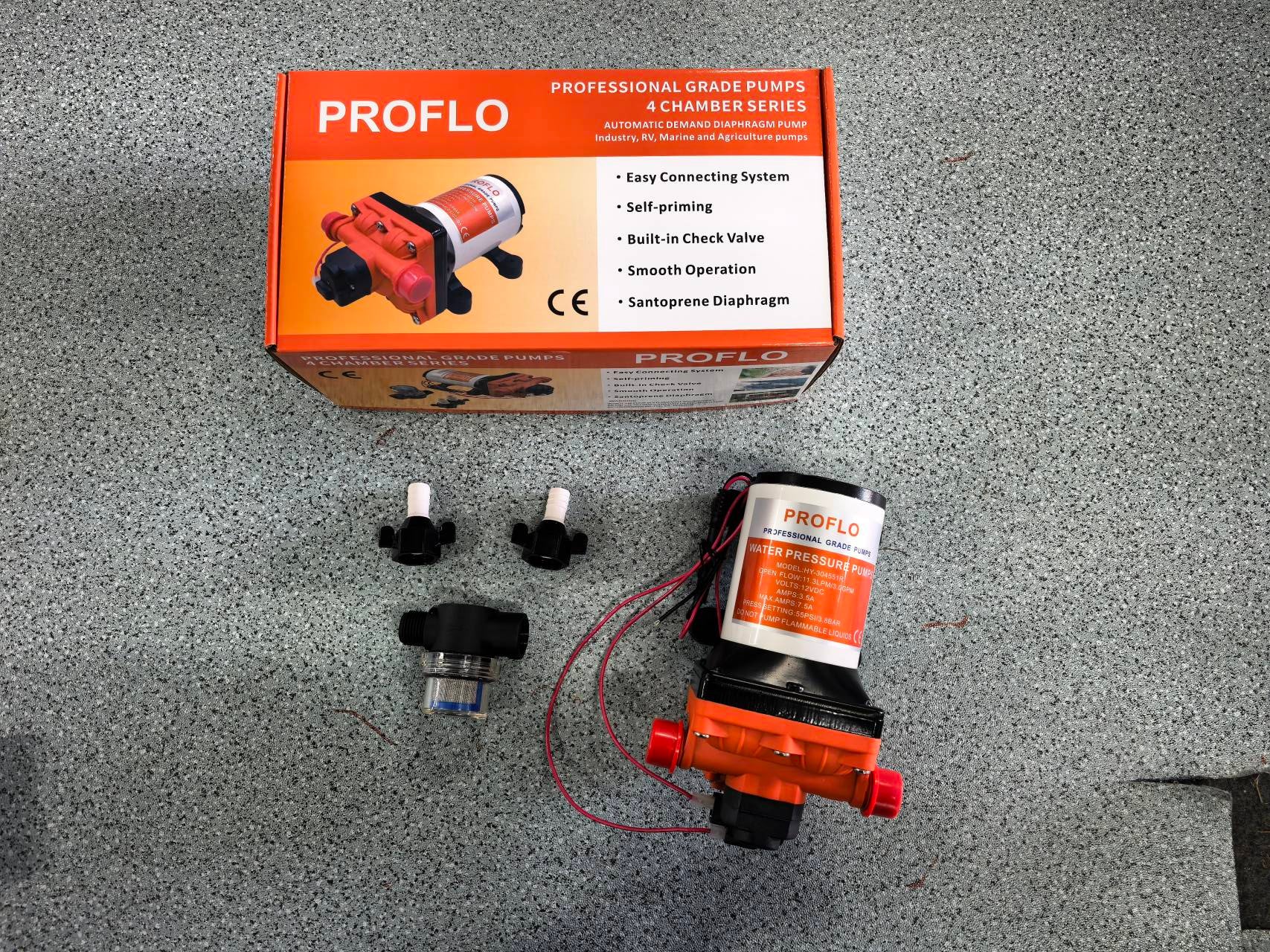

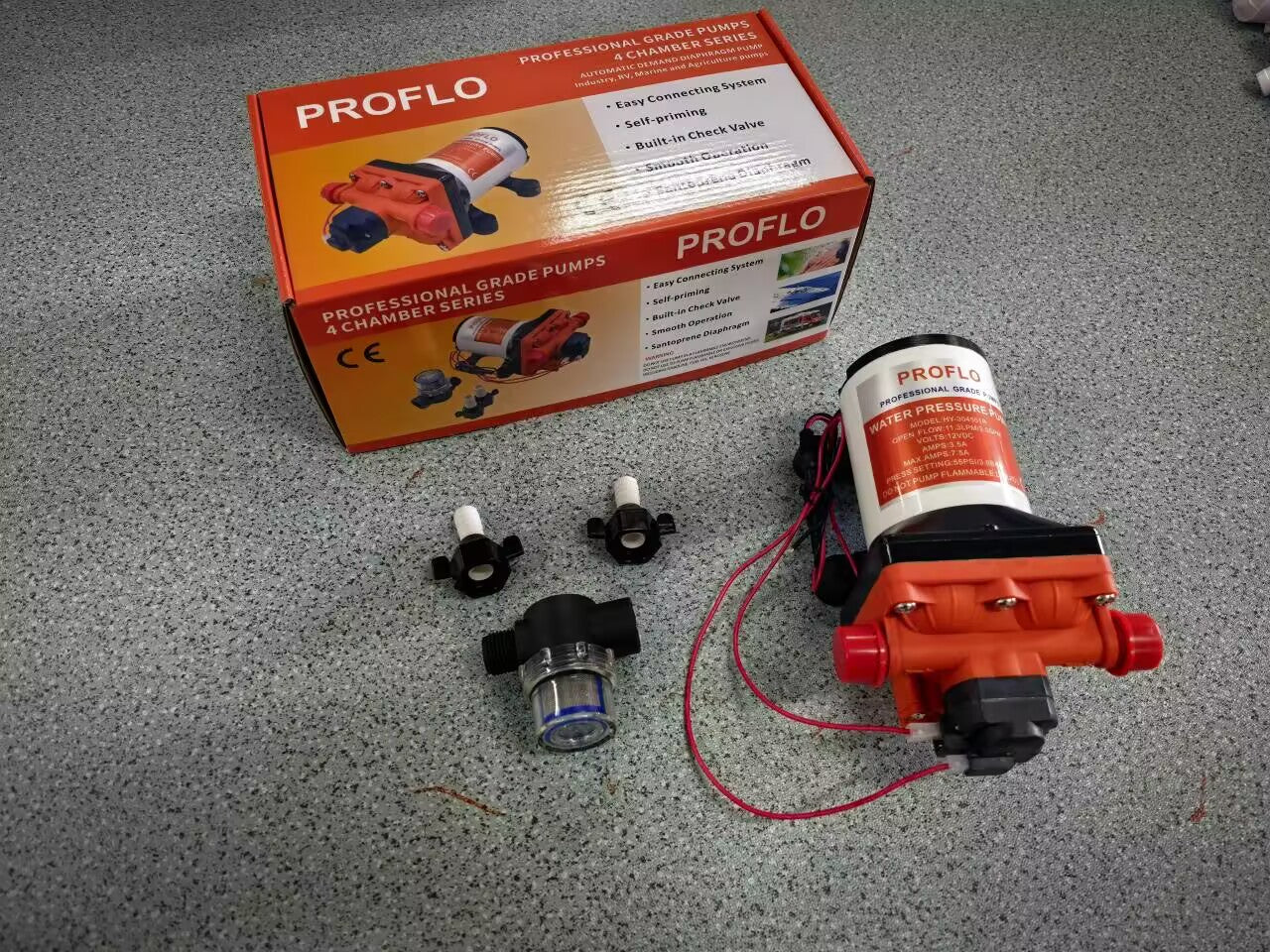

Pressure Pump 12V (11.3L 55PSI) SEAFLO 42 Series
Regular price
$130.00 AUD
Regular price
Sale price
$130.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Ultra compact 11.3L/Min 55 PSI 12v Pressure Pump uses duplex diaphragm design to deliver flow and pressure comparable to much larger pumps.
Meet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find.
| PUMP | |
| Type | 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 4.0 lbs (1.9 kg) |
| MOTOR | |
| Leads | 16 AWG, 9.4" (24 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 7.5 A |
| Fuse | 11.3 A |
